Zebra ZC300 ID Card Printer

Compact Card Printers that Deliver it All

THE SIMPLEST CARD PRINTER ON THE PLANET

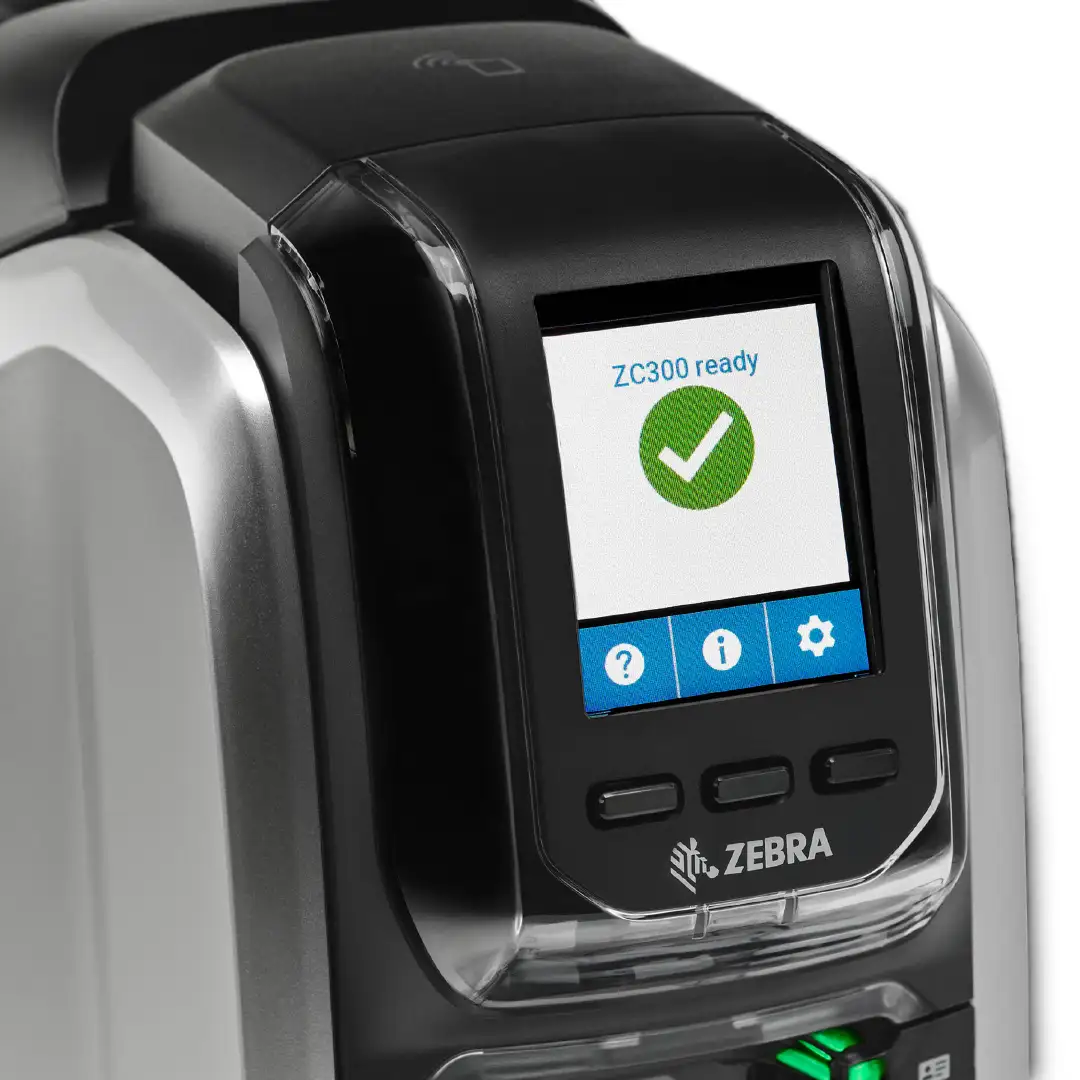

Highly Graphical LED/LCD Interface
Print what you want, when you want, from just about anywhere, all at lightning speed. With the ZC300 Series card printers, you get ground-breaking simplicity, security and connectivity options for even the most complex cards – all in the slimmest fit-everywhere design.

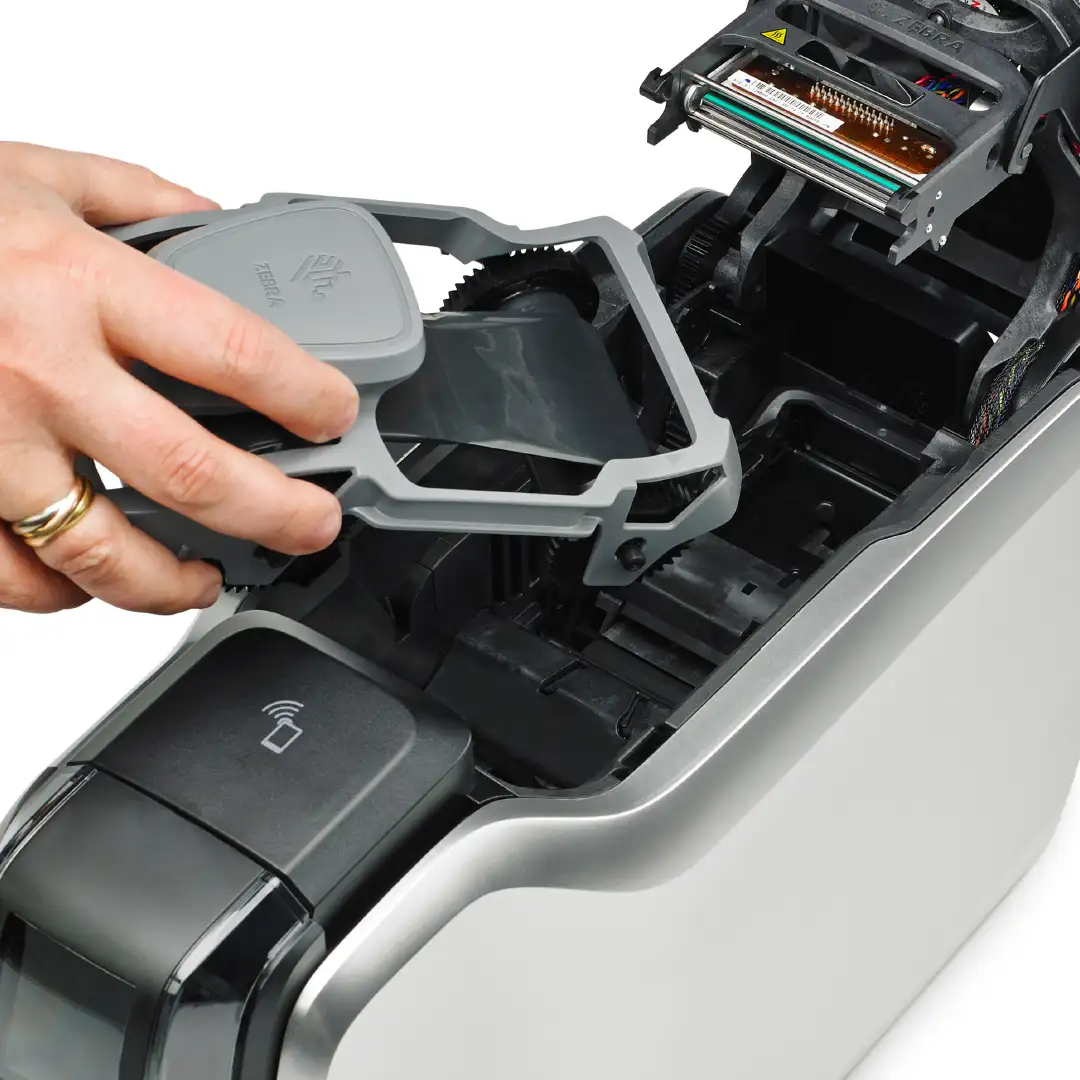

The ZC300 offers highly-intuitive well-tested icons, animations and text-based messages in your own language, allowing any user to easily understand what the printer needs and how to perform virtually any function — including how to clear a printer jam, fix a ribbon, load a ribbon or cards and more.

DOWNLOAD BROCHURE

Description

STANDARD FEATURES

300 dpi (11.8 dots/mm) print resolution
2 GB flash memory
Image size: 1006 x 640 pixels
Auto calibration of ribbon
USB 2.0 and Ethernet 10/100 connectivity
100 card capacity auto-adjusting input hopper (30 mil)
100 card capacity output hopper (30 mil)
Manual card feeding capability with LED bezel
Graphical color LCD
3 Tricolor printer status indicator lights
Kensington® secure lock slot
Print Touch NFC tag for online printer help and documentation access
Printer host authentication
Data encryption
Three-year limited warranty on printer and printhead

Printing Specifications

Dye-sublimation thermal transfer direct to card print method
Full-color or monochrome printing
Single and dual-sided printing
Edge-to-edge printing on standard CR-80 media Printing throughput (cards per hour) based on batch printing with USB connectivity. Times may vary depending on the computer configuration
900 cards/hour single sided monochrome
200 cards/hour single-sided YMCKO
140 cards/hour dual-sided YMCKOK
450 cards/hour dual sided monochrome

Physical Characteristics

Dimensions

Single Sided
10.2 in. H x 6.2 in. W x 15.1 in. D
258 mm H x 157 mm W x 383 mm D
Dual Sided
10.2 in. H x 6.2 in. W x 18.4 in. D
258 mm H x 157 mm W x 468 mm D

Weight

Single Sided
8.8 lbs (4.0kg)
Dual Sided
9.7 lbs (4.4 kg)

Communications and Interface Capabilities

USB 2.0: Standard
Built-in 10/100 Ethernet: Standard
802.11ac: Optional

Encoding Options and Specifications

Magnetic stripe encoder — ISO 7811 (new and pre-encoded; tracks 1, 2, and 3;
high and low coercivity; stripe down and stripe up with duals-sided printers) *
EPCglobal Gen 2 UHF RFID encoder
*Field upgradeable options
