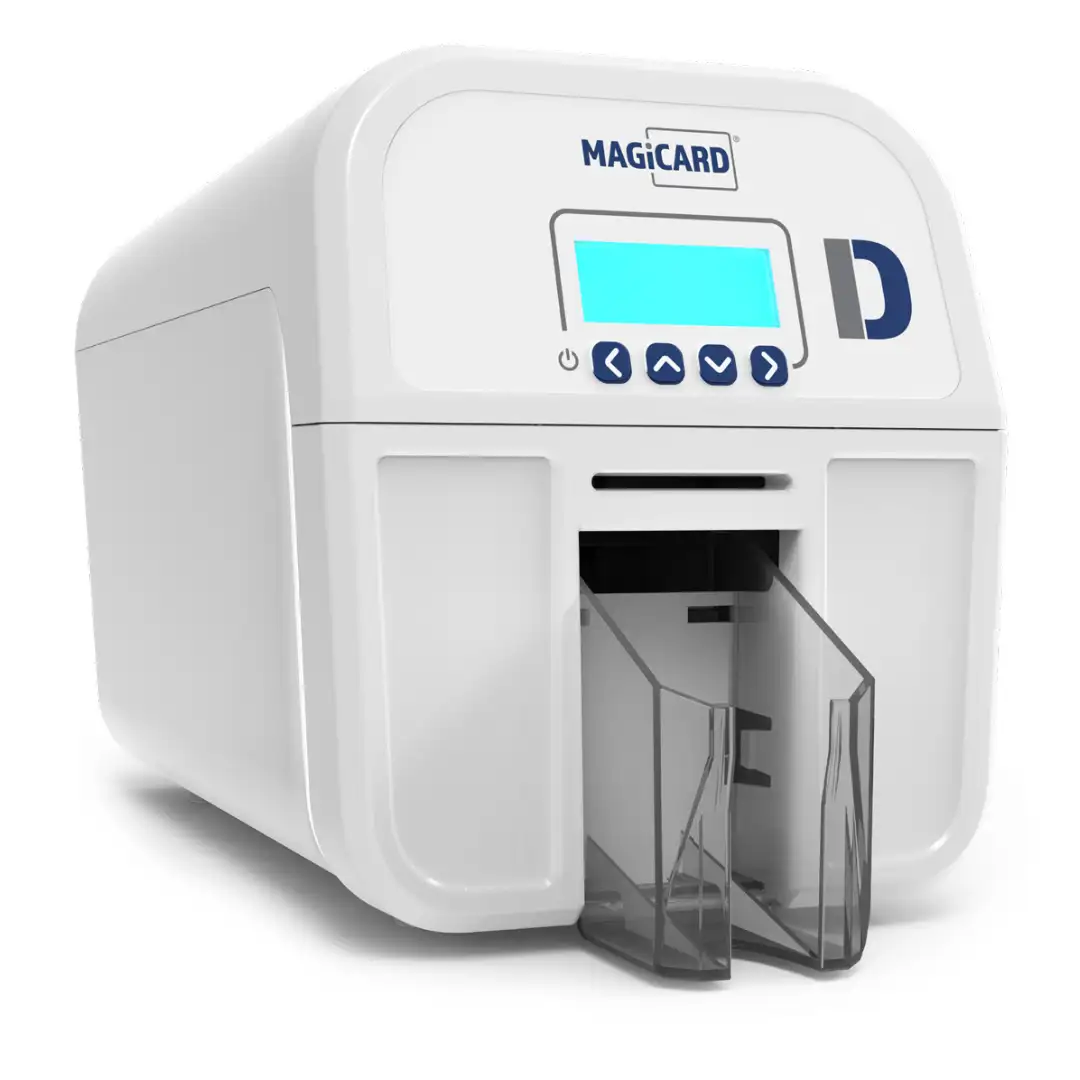

Magicard D DUO ID Printer

Magicard D features:
Digital shredding
Once data has been used in a print job, it is fragmented, rendering irrecoverable, helping to ensure the Magicard D is not a repository for data.

Enhanced security
The Magicard D has the ability to print an anti-fraud HoloKote® watermark on every card. It also has the ability to receive up to four anti-fraud customised HoloKotes® direct to the printer via Magicard’s web tool.

Superior quality
The Magicard D has a wide colour spectrum making each print vibrant and colour-rich – perfect for photographs on ID cards and a more accurate depiction of corporate logos and other images. Also available as an option to print at '600 x 300 dpi resin only' to allow for readable text at small font size (≥5 point).

Easy set-up
The Magicard D integrates with an existing network infrastructure, reducing the set-up time and means little technical knowledge is required.

Reduced intervention
The Magicard D boasts a high level of durability so the risk of failure and requirements for human intervention is greatly reduced.

Efficient printing
Each full colour card, with HoloKote® can be printed in under 23 seconds and less than six seconds for resin-only.

Updates and upgrades
Magicard’s robust update process allows for updates to be applied to each printer as and when they are available. Upgrades are delivered electronically to the printer via Magicard’s electronic upgrade web tool.

Print speed* (single sided)
Full panel colour film: up to 23 seconds per card / 156 cards per hour
Half panel colour film: up to 20 seconds per card / 180 cards per hour
Monochrome film: up to 6 seconds per card / 620 cards per hour

Card capacities
Card input: 100
Card output: 70

Visual security
Standard HoloKote® watermark (x4) l
Custom HoloKote® watermark l
HoloPatch® cards l

Encoding security options
ISO 7811, JIS2 magnetic stripe l
ISO 7816, EMV contact chip l
MIFARE®, DESFire®, iClass®, others

Encoding security options
ISO 7811, JIS2 magnetic stripe l
ISO 7816, EMV contact chip l
MIFARE®, DESFire®, iClass®, others l

Warranty**
2 years MagiCover Limited Warranty
Additional 1 year warranty extension - to be purchased at the time of printer sale.

Print technology
Dye sublimation/rewritable.

Feed System
Manual/Automatic

Card Thickness
0.50mm to 1.27mm (20mil to 50mil)

Connectivity
USB l
Ethernet l

Driver compatibility
Win 11 / Win 10, 2004 and above, both 32 / 64 bit.
Windows Server 2022 / 2019 / 2016 / 2012 R2, 64 bit.
macOS latest version. Linux with CUPS support.

Dimensions (including feeder and stacker)
210 W x 251 H x 386 D mm / 8.3 W x 9.9 H x 15.2 D”

Weight (including feeder and stacker)
4.75kg /10.5lb

Operating environment
Office 10°C to 30°C / 50°F to 85°F

Power source
External power supply 100-240V 50-60Hz autoranging.
