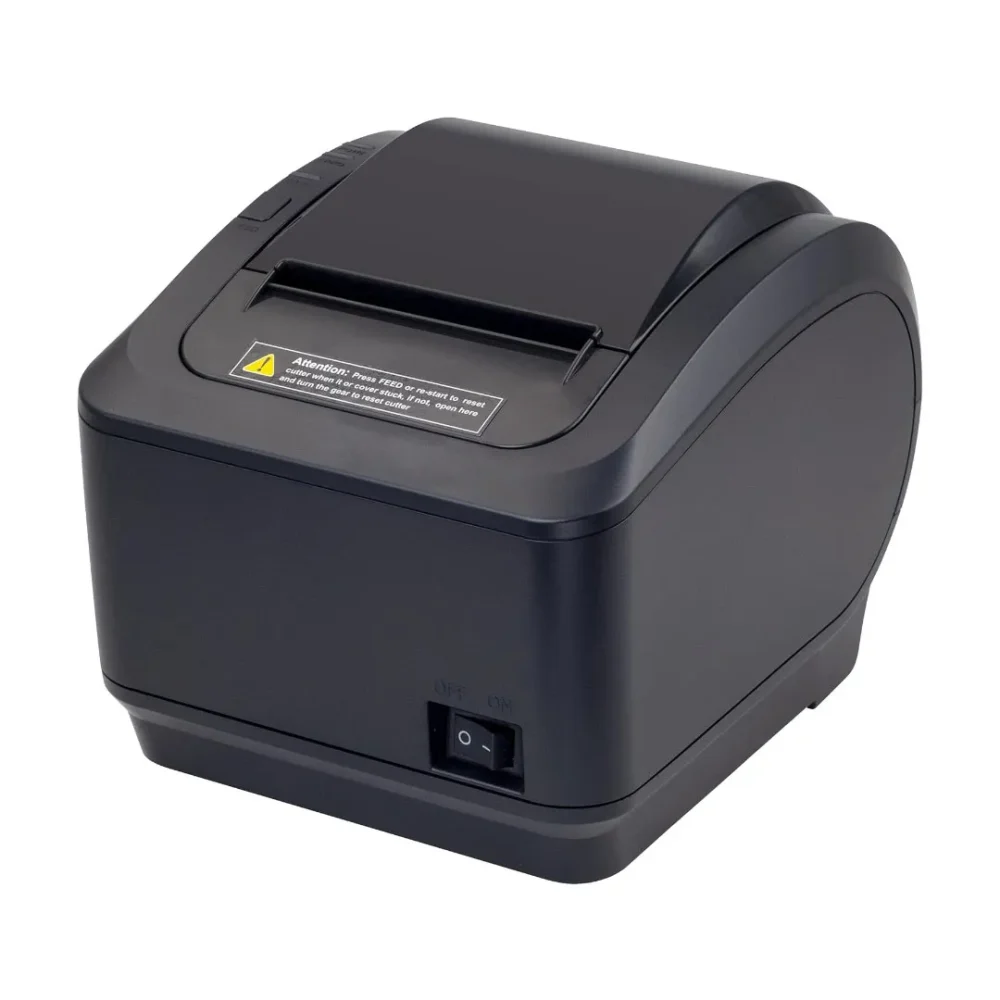

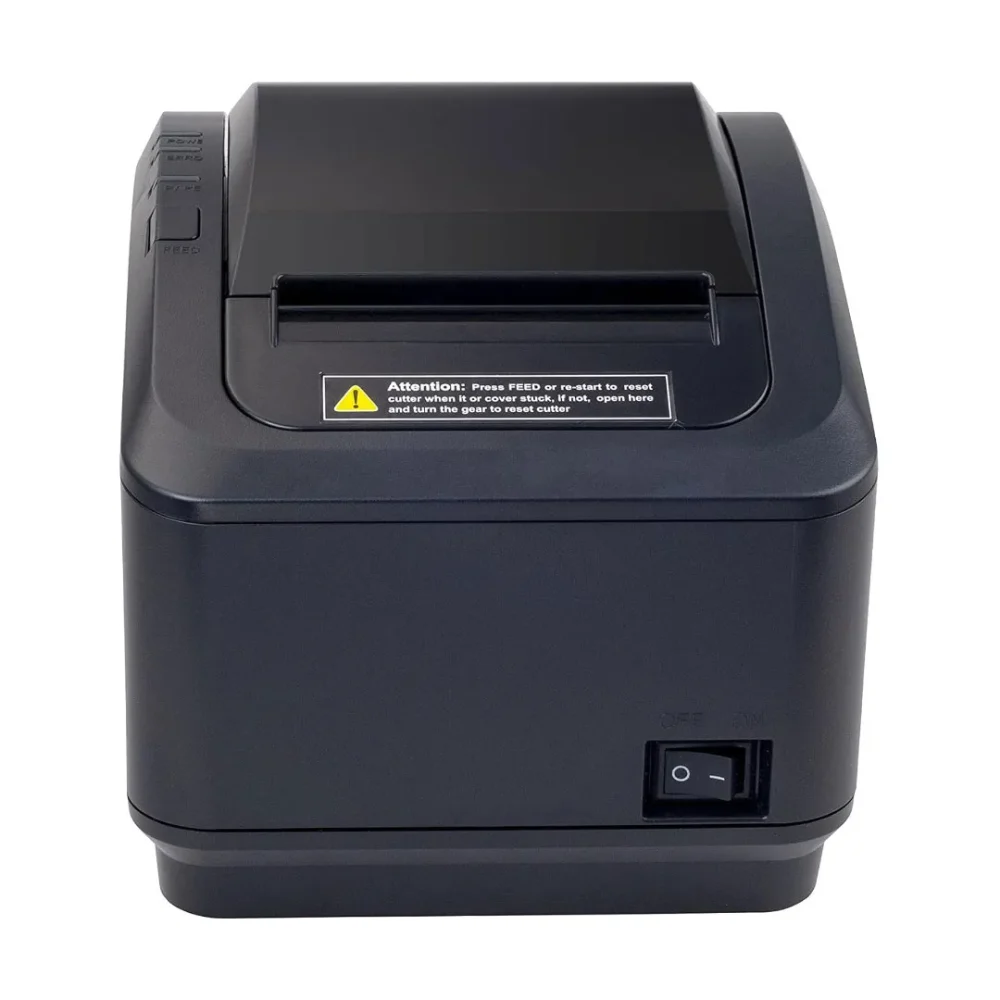

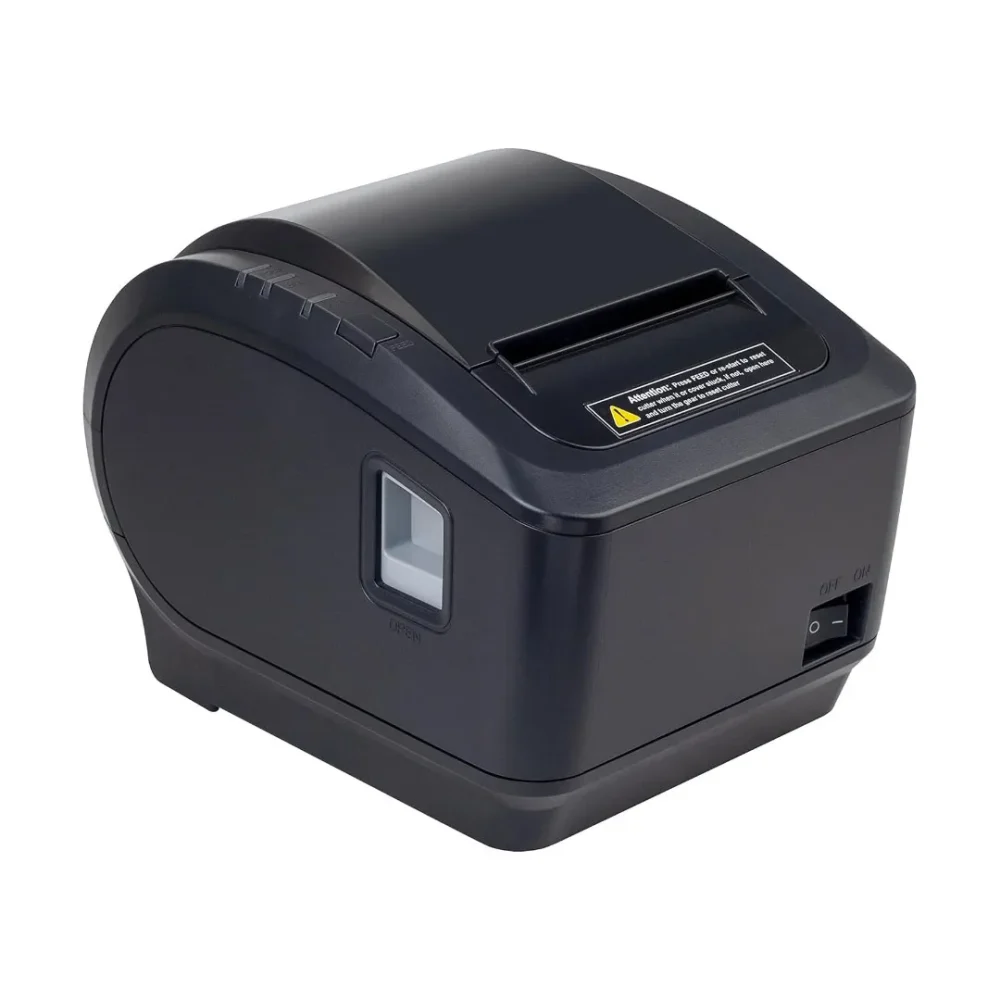

XPrinter XP-K200L / K260L / K300L
- Wall mount available
- Support page-mode (K300L)
- Support 58/80 switch (Optional, K300L)
- Support IAP update online (Except USB+Serial)
- Support QRcode, PDF417 (Except USB+Serial)
- Sounds and light alarm function optional
- Transparent cover design
- Print width: 72mm (adjustable by commands)
- Column Capacity : 576 dots / line or 512 dots / linePrinting speed : 200mm / s
- Interface : USB + LAN
- Printing paper : 79.5 ± 0.5mm
- Line spacing: 3.75mm (Adjustable by commands)
- Weight: 2 Kg
- Dimensions: 195 × 140 × 138mm (D × W × H)
Xprinter XP-K200L 80mm receipt printer is distributed genuine at Xprinter Vietnam. K200L uses 80mm Paper (K80) Receipt Paper. The XP-K200L is equipped with a Japanese standard thermal printhead. The cutting knife is made of super-hard, super-durable steel. K200L is equipped with advanced motor technology, which helps the Xprinter XP-K200L push the printing speed up to 200mm / s.

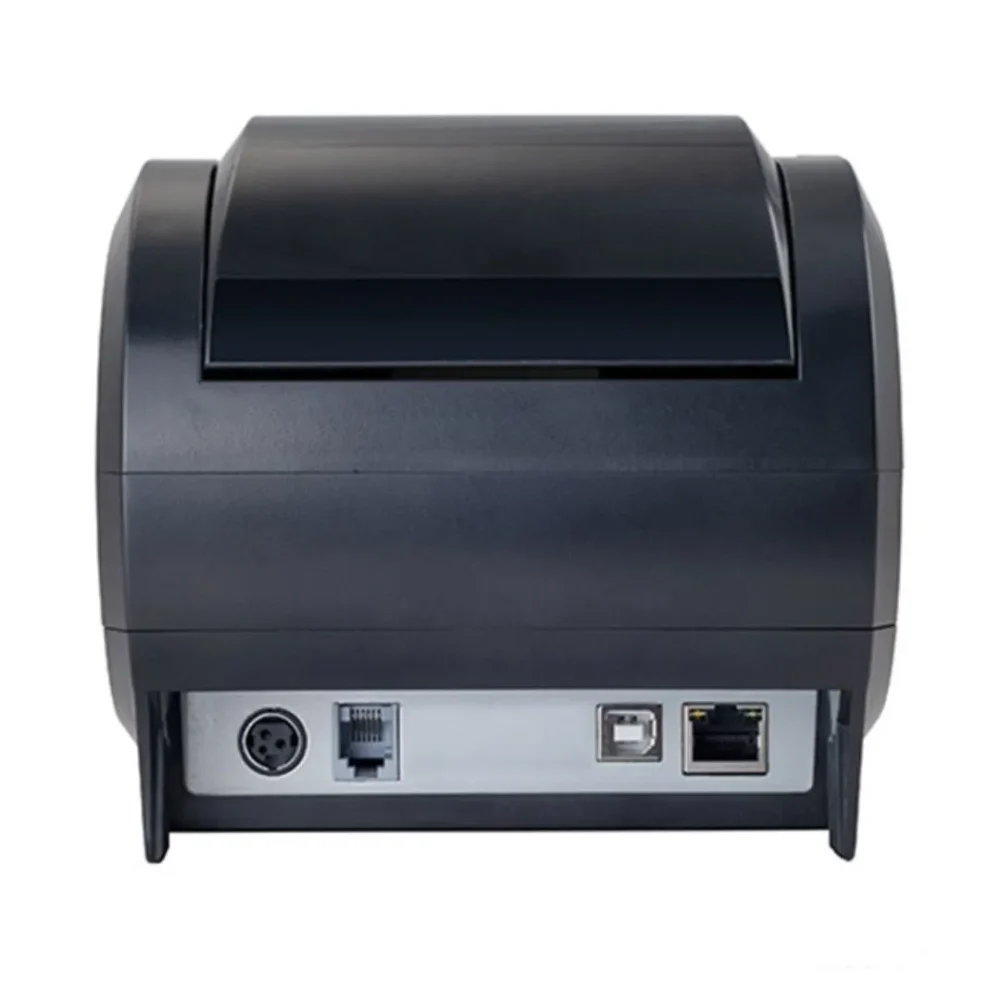

Xprinter XP-K200L thermal receipt printer is equipped with a USB + LAN port. Many connection ports help manufacturers reach a larger number of customers. To meet the needs of using thermal printers for different models.
The XP-K200L is designed by Xprinter ‘s experts with fashionable style, modern appearance. XP-K200L is equipped with a sturdy frame, which Helps protect the machine structure to work best.
Xprinter equips the K200L with the function of monitoring the printer, monitoring the working status of the printer. Helps control printhead heat, avoid overheating leading to a fire.

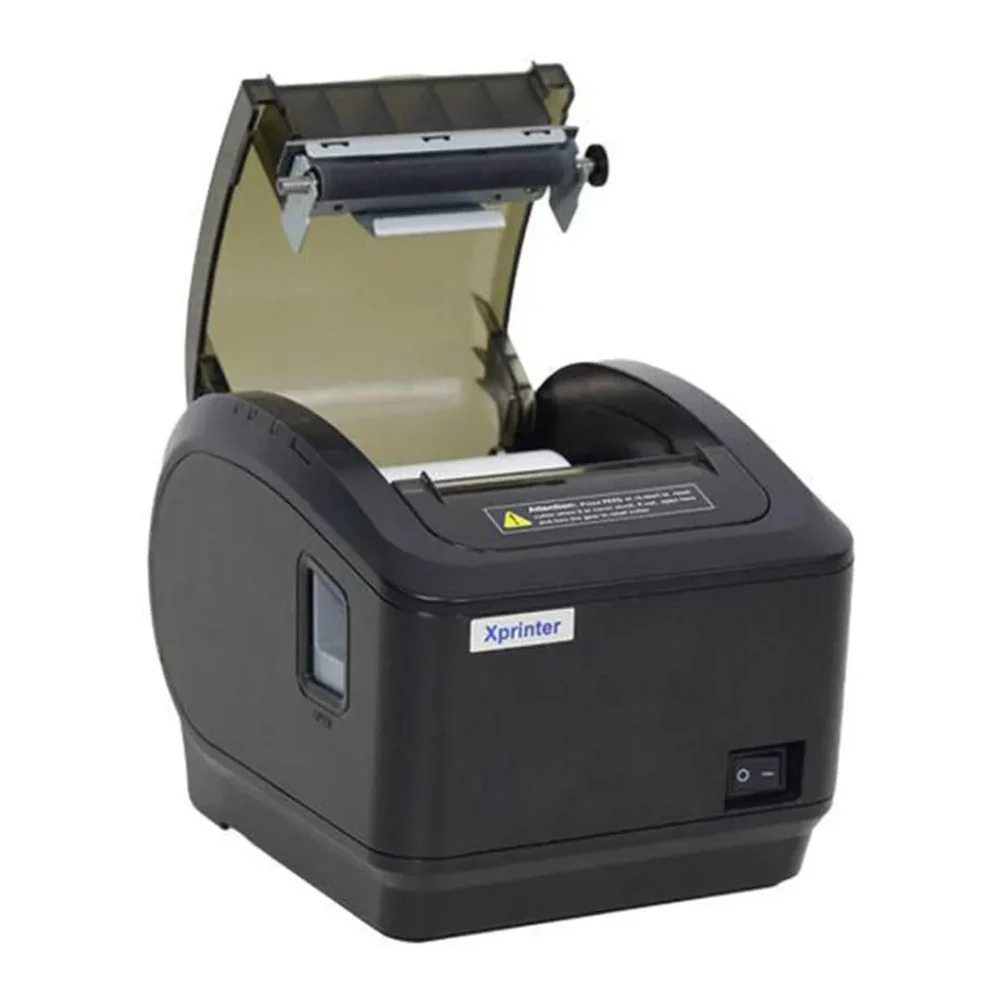

A large paper holder that can hold up to 80mm of paper rolls
Application
- Supermarket
- Restaurant
- Bar, pub
- Cinema
- Garage, transportation
- Hospitals, clinics
Technical specifications
| Printing method | Direct thermal printing |
| Print width | Paper width 72mm |
| Point density | 576 points / line or 512 points / line |
| Print speed | 200 mm / sec |
| Connector | USB + LAN |
| Printing paper | 79.5 ± 0.5 mm × 80 mm |
| Line spacing | 3.75 mm (line spacing can be adjusted by command) |
| Some columns | 80mm paper: 80mm paper: Font A – 42 columns or 48 columns / Font B – 56 columns or 64 columns / simple, traditional – 21 columns or 24 columns |
| Character size | ANK character, Font A: 1.5 × 3.0mm (12 × 24 dots) |
| Font B: 1.1 × 2.1mm (9 × 17 dots) | |
| Jane / Traditional: 3.0 × 3.0mm (24 × 24 dots) | |
| Extended font | PC347 (Standard Europe), Katakana, |
| PC850 (Multilingual), PC860 (Portugal), | |
| PC863 (Canada-France), PC865 (Nordic), | |
| Western Europe, Greece, Israel, Eastern Europe, Iran, WPC1252, PC866 (Cyrillic # 2), PC852 (Latin2), PC858, IranII, Latvia, Arab, PT151 (1251) | |
| Barcode type | UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / |
| CODE39 / ITF / CODABAR / CODE93 / CODE128 | |
| Input buffer | 64k bytes |
| NV flash memory | 256k bytes |
| Power adapter | Input: AC 110V / 220V, 50 ~ 60Hz |
| Power supply | Output: DC 24V / 2.5A |
| Cash drawer | DC 24 V / 1A |
| Weight | 2 kg |
| Pack | 195 × 140 × 138mm (DxWxH) |
| Work environment | Temperature: 0 ～ 45 ° C, Humidity: 10 ～ 80% |
| Storage environment | Temperature: -10 60 ° C, Humidity: 10 ～ 90% (no condensation) |
| Cutter | 1.5 million times |
| Print plug | 150 km |
